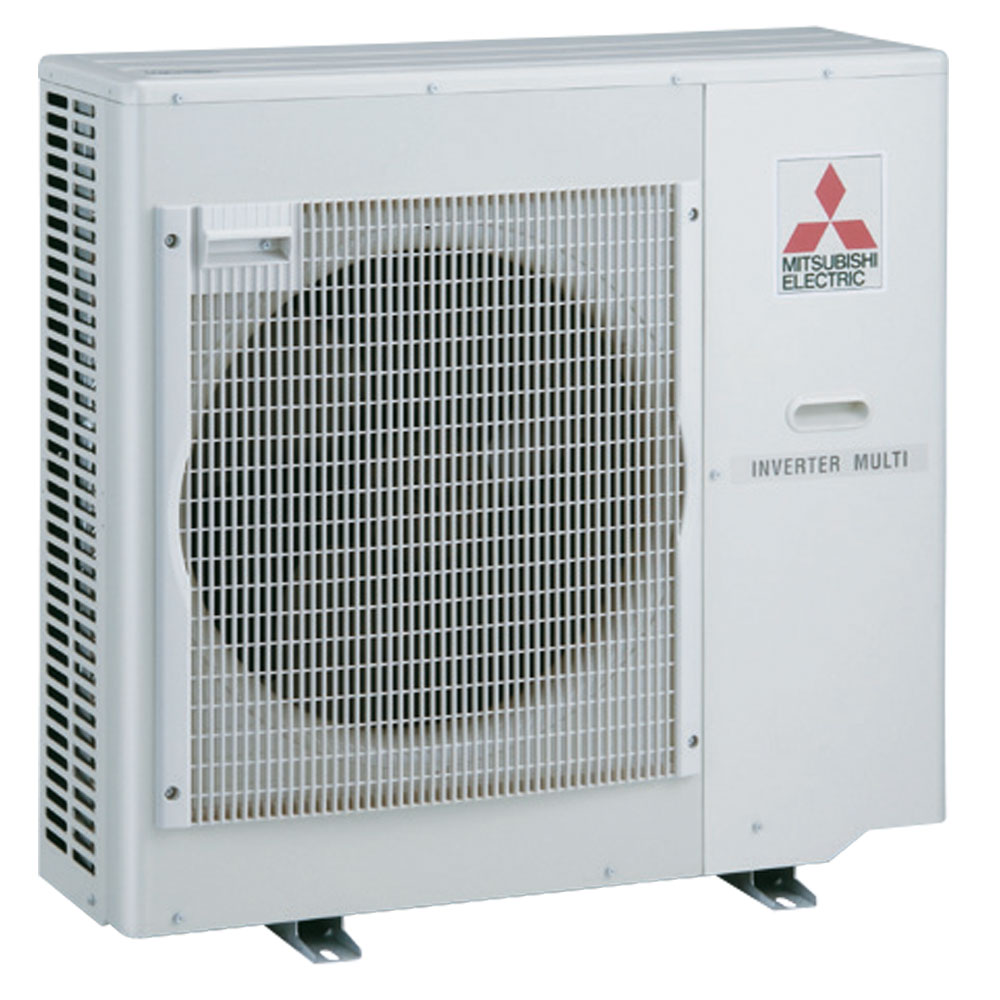

The five port multi room outdoor unit allows you to connect 2-5 indoor units, up to a Class 71, with a maximum total Class of 171. Choose the indoor unit best suited to each room’s style and size, and keep your home’s exterior looking neat with only one outdoor multi room unit.
With our OmniCore Multi Room Systems, you have the flexibility to choose the perfect indoor unit for each room. You may want a super quiet, low capacity unit for a smaller bedroom and a stylish, higher capacity unit for the larger living room. With an OmniCore Multi Room System, you are able to connect these to just one OmniCore outdoor unit, rather than requiring one for each indoor – saving outdoor space and maintaining your home’s exterior aesthetics.
Mitsubishi Electric Inverter control distributes tempered air in the shortest period of time and ensures that the system operates at ideal capacity, minimising energy wastage.
Our OmniCore Multi Room Systems allow individual control of every heat pump in your home; whether you want to increase the temperature in the kid’s bedroom before bedtime, or turn off the living room heat pump as you head out for dinner. With individual heat pump control, you can adjust the temperature to suit your comfort levels and ensure a heat pump is only operating when needed.
Our OmniCore Multi Room outdoor units are equipped with a Silent Mode; ensuring outdoor sound levels remain as low as possible during operation.
Whether you’re on your way home, running late, or even when you’re in a different country, Wi-Fi Control lets you control your OmniCore Multi Room System to suit your lifestyle. With the purchase of a Wi-Fi interface for each indoor unit, your OmniCore Multi Room System can be seamlessly controlled and monitored no matter where you are.
| · | Function: Cooling/Heating | · | Type: Multi Split, Inverter |
| · | Multi-Split System Compatible: Yes | · | Number of indoor units: 2, 3, 4 or 5 |
| · | Capacity - Cooling: 10.0 kW | · | Capacity - Heating: 10.0 kW |
| · | Capacity - Cooling (min. - max.): 3.9 - 11.0 kW | · | Capacity - Heating (min. - max.): 4.1 - 14.0 kW |
| · | Power Input - Cooling: 2.95 kW | · | Power Input - Heating: 2.30 kW |
| · | EER / COP: 3.39 / 4.35 | · | AEER / ACOP: 3.22 / 4.09 |
| · | Operation Range - Cooling: -10 / +46 degC | · | Operation Range - Heating: -15 / +24 degC |
| · | Sound Level - Cooling (dB(A)): 52 | · | Sound Level - Heating (dB(A)): 57 |
| · | Current - Cooling (Rated): 13.0 A | · | Current - Heating (Rated): 10.1 A |
| · | Air Volume - Cooling (Litre/sec): 1085 | · | Air Volume - Heating (Litre/sec): 1133 |
| · | Refrigerant: R410A | · | Liquid Pipe Size (OD, mm): 6.35 x5 |
| · | Gas Pipe Size (OD, mm): 9.52 x4 + 12.7 x1 | · | Max. Pipe Length (m): 80 total / 25 each |
| · | Max. Pipe Height (m): 15 /10* | · | Power Supply: 230V / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 950 x 330 x 796 | · | Weight: 64 kg |
| · | [*1]: If the outdoor is installed higher than the indoor max. height is reduced to 10m. | ||
