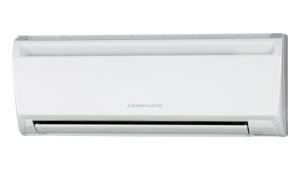

High Wall indoor unit - DC inverter heat pump with infra red remote. Cooling/Heating capacity: 5.0/5.6kW. (WxDxH, mm): 780 x 210 x 298. Weight: 9kg. Liquid / Gas Pipe (OD, mm): 6.35 / 12.7. Requires a MUZ-GB50VA outdoor unit or can be used in a customisable MXZ-3A54, 4A71, 4A80, 5A100 or 8A140VA Multi-Split System.
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| · | Capacity - Cooling: 5.0 kW | · | Capacity - Heating: 5.6 kW |
| · | Capacity - Cooling (min. - max.): 0.9 - 5.8 kW | · | Capacity - Heating (min. - max.): 0.9 - 7.8 kW |
| · | Power Input - Cooling: 1.66 kW | · | Power Input - Heating: 1.70 kW |
| · | EER / Star rating - Cooling: 3.01 / 3.5 | · | COP / Star rating - Heating: 3.29 / 4.0 |
| · | Sensible - Cooling: 3.96 kW | ||
| · | Operation Range - Cooling: -10 / +43°C | · | Operation Range - Heating: -15 / +24°C |
| · | Indoor Sound - Cooling (Low - Super High, dB(A)): 32 / 38 / 44 / 48 | · | Indoor Sound - Heating (Low - Super High, dB(A)): 30 / 36 / 42 / 48 |
| · | Current - Cooling [in+outdoor] (Rated / Max.): 7.36 / 16.0 A | · | Current - Heating [in+outdoor] (Rated / Max.): 7.54 / 16.0 A |
| · | Air Volume - Cooling (Super High, Litre/sec): 182 | · | Air Volume - Heating (Super High, Litre/sec): 182 |
| · | Refrigerant: R410A | · | Liquid Pipe Size (OD, mm): 6.35 |
| · | Gas Pipe Size (OD, mm): 12.7 | · | Max. Pipe Length (m): 30 |
| · | Max. Pipe Height (m): 15 | · | Power Supply: 230V +/- 10% / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 780 x 210 x 298 | · | Weight: 9 kg |
