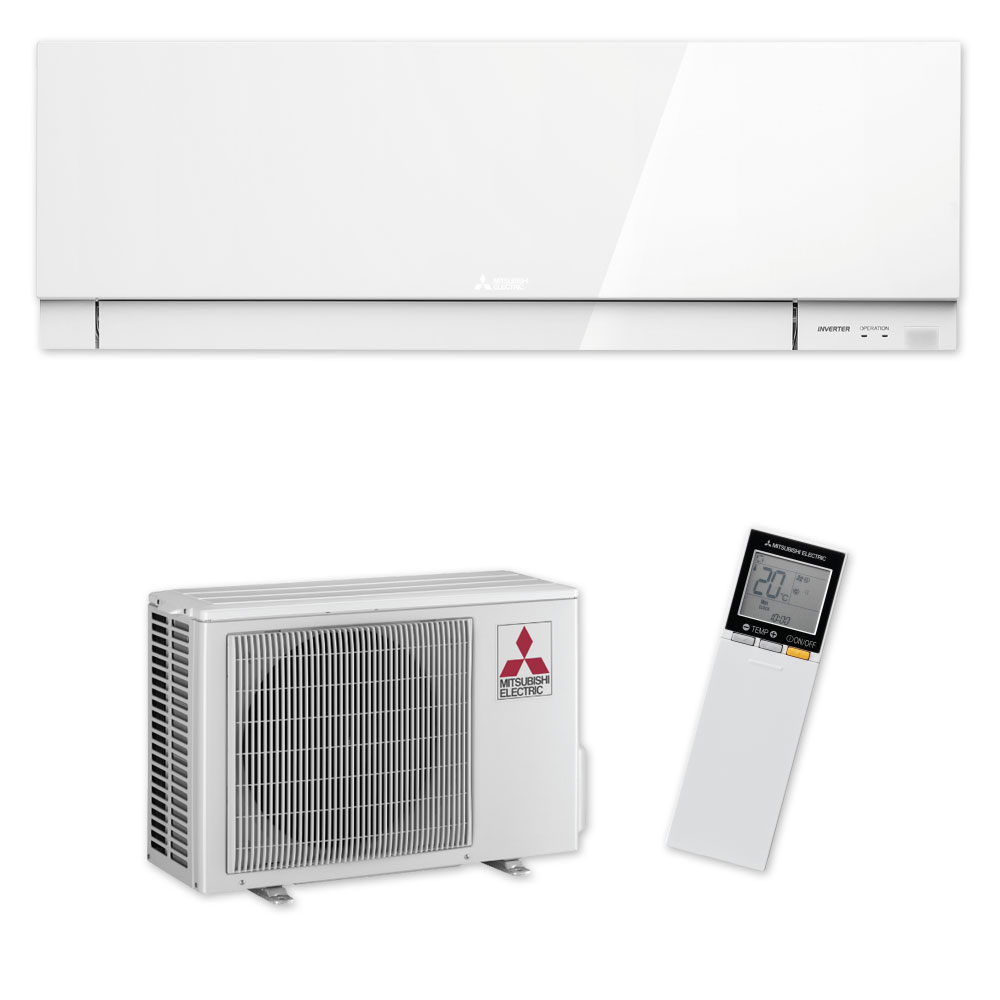

Our Designer EF25 in Glossy White is super quiet with a slim facade; perfect for discreet heating in bedrooms or living areas. With nano-platinum filters, they also have superior air cleaning performance. The full Designer Series range comes with a 7-Day Controller, providing both style and functionality.
Combining efficient technology with unique energy saving features our Designer Series systems will stylishly contribute to reduced energy consumption in your home or office.
With an advanced “Silent Mode” fan setting, the range starts from a super quiet 21dBA. Allowing you to enjoy quiet, yet powerful performance.
The extra-large, washable 3D filter surface incorporates nanometre-sized platinum-ceramic particles designed to effectively collect fine dust particles, deodorise the air and eliminate bacteria at the same time. This level of advanced filtration is better at the collection of dust in comparison to conventional filters.
The Designer Series with its distinctive contemporary, slim-line profile has been awarded the Prestigious Reddot Design Award 2015 in recognition for outstanding design quality.
The international jury only confers this sought-after seal of quality to products that set themselves apart significantly from comparable products thanks to their excellent design.
Advanced infrared controller allowing the programming of up to four settings (per 24 hour period) including start/stop operation and temperature settings over a 7 day period. This eliminates the need to reset the timer daily. You can program your heat pump to start up before you wake or return home and regulate your energy usage without compromising on comfort.
With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.
Read more and try a demonstration
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| · | Capacity - Cooling: 2.5 kW | · | Capacity - Heating: 3.2 kW |
| · | Capacity - Cooling (min. - max.): 1.2-3.4 kW | · | Capacity - Heating (min. - max.): 1.1-4.2 kW |
| · | Power Input - Cooling: 0.542 kW | · | Power Input - Heating: 0.698 kW |
| · | Star rating - Cooling: 4.5 | · | Star rating - Heating: 4.5 |
| · | EER / COP: 4.58 / 4.59 | · | AEER / ACOP: 4.55 / 4.57 |
| · | Previous Star rating: N/A | · | Sensible - Cooling: 2.30 kW |
| · | Operation Range - Cooling: -10 / +46 degC | · | Operation Range - Heating: -15 / +24 degC |
| · | Sound Level - Cooling (Quiet - Super High, dB(A)): 21/23/29/36/42 | · | Sound Level - Heating (Quiet - Super High, dB(A)): 21/24/29/37/45 |
| · | Current - Cooling [in] (Rated / Max.): 0.14 A | · | Current - Heating [in] (Rated / Max.): 0.26 A |
| · | Air Volume - Cooling (Super High, Litre/sec): 174 | · | Air Volume - Heating (Super High, Litre/sec): 198 |
| · | Refrigerant: R410A | · | Liquid Pipe Size (OD, mm): 6.35 |
| · | Gas Pipe Size (OD, mm): 9.52 | · | Max. Pipe Length (m): 20 |
| · | Max. Pipe Height (m): 12 | · | Power Supply: 230V / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 885 x 195 x 299 | · | Weight: 11.5 kg |
| · | Function: Cooling/Heating | · | Type: Single Split, Standard Inverter |
| · | Operation Range - Cooling: -10 / +46°C | · | Operation Range - Heating: -15 / +24°C |
| · | Sound Level - Cooling (dB(A)): 47 | · | Sound Level - Heating (dB(A)): 48 |
| · | Air Volume - Cooling (Litre/sec): 501.67 | · | Air Volume - Heating (Litre/sec): 585 |
| · | Power Supply: 240V +/- 10% / Single Phase / 50 Hz | · | Refrigerant: R410A |
| · | Liquid Pipe Size (OD, mm): 6.35 | · | Gas Pipe Size (OD, mm): 9.52 |
| · | Max. Pipe Length (m): 20 | · | Max. Pipe Height (m): 12 |
| · | Dimensions (WxDxH, mm): 800 x 285 x 550 | · | Weight: 30 kg |
