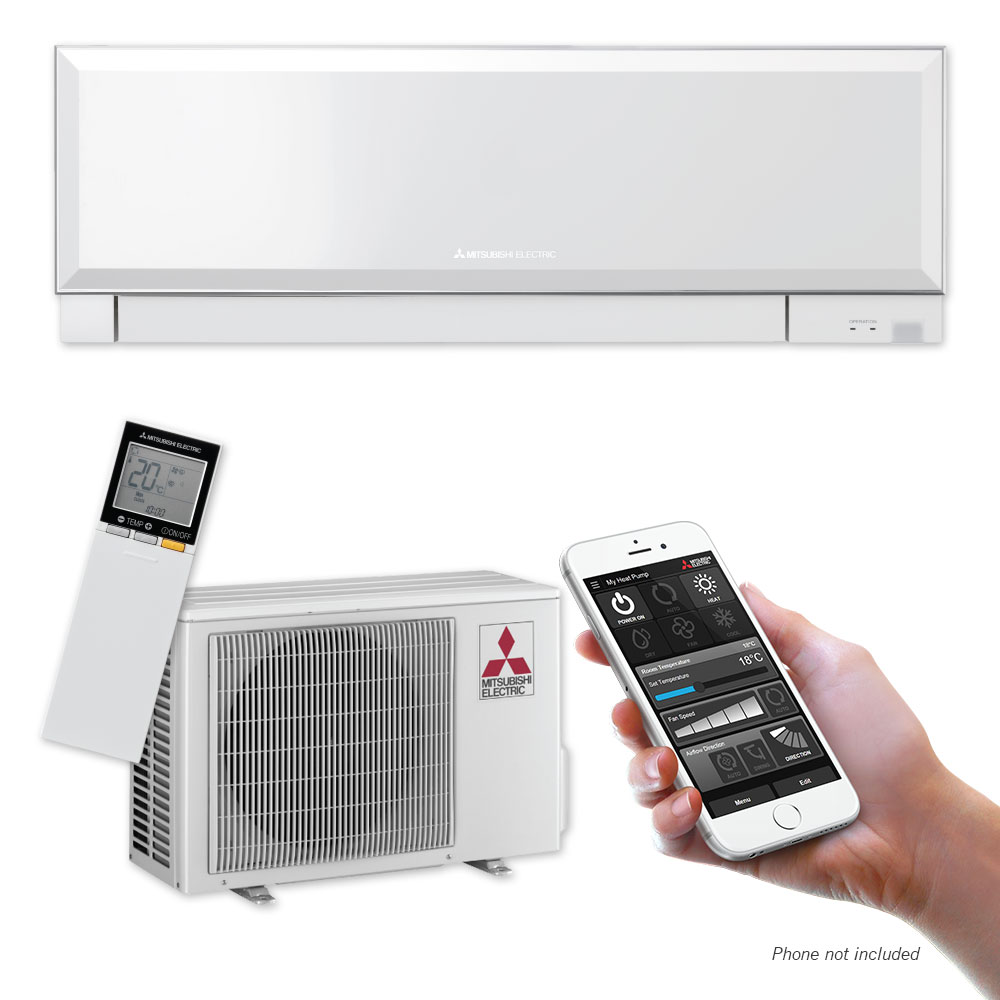

Designer EF35 High Wall Heat Pump with Wi-Fi

MSZ-EF35VEW

Our Designer EF35 in classic white is super quiet and with its slim façade will provide discreet heating, perfect for your bedroom or living areas. With nano-platinum filters, they also have superior air cleaning performance. ThThe Wi-Fi range comes equipped with an award winning Wi-Fi Control Adaptor which allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account.

Discontinued Product
Replacement product available
MSZ-EF35VE2W

Features

Stylish Flat Panel Design

Our Designer Series wall mounted units are perfectly streamlined. Slimline with silver-bevelled edges and flat panel façade, they are designed to suit even the most discerning taste.

Includes the Wi-Fi Control Interface

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

7-Day Programmable Hand Held Controller

Advanced infrared controller allowing the programming of up to four settings (per 24 hour period) including start/stop operation and temperature settings over a 7 day period. This eliminates the need to reset the timer daily. You can program your heat pump to start up before you wake or return home and regulate your energy usage without compromising on comfort.

Energy Efficiency

Combining efficient technology with unique energy saving features our Designer Series systems will stylishly contribute to reduced energy consumption in your home or office.

Super Quiet Operation

With an advanced “Silent Mode” fan setting, the range starts from a super quiet 21dBA. Allowing you to enjoy quiet, yet powerful performance.

Superior Filtration

Equipped with a nano-platinum filter which is both antibacterial and deodorising, the filter ensures increased dust catchment and superior air cleaning for your home.

Features:

Specifications

MSZ-EF35VEW-A1 - DC Inverter White High Wall

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 3.5 kW · Capacity - Heating: 4.0 kW
· Capacity - Cooling (min. - max.): 1.4 - 4.0 kW · Capacity - Heating (min. - max.): 1.8 - 5.5 kW
· Power Input - Cooling: 0.91 kW · Power Input - Heating: 0.96 kW
· Star rating - Cooling: 3 · Star rating - Heating: 4
· EER / COP: 3.9 / 4.3 · AEER / ACOP: 3.89 / 4.29
· Previous Star rating: N/A · Sensible - Cooling: 2.67 kW
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (Quiet - Super High, dB(A)): 21 / 24 / 29 / 36 / 42 · Sound Level - Heating (Quiet - Super High, dB(A)): 21 / 24 / 30 / 38 / 46
· Current - Cooling [in] (Rated): 0.14A · Current - Heating [in] (Rated ): 0.30A
· Air Volume - Cooling (Super High, Litre/sec): 175 · Air Volume - Heating (Super High, Litre/sec): 221.6
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. Pipe Length (m): 20
· Max. Pipe Height (m): 12 · Power Supply: 230V +/- 10% / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 895 x 195 x 299 · Weight: 11.5 kg

MUZ-EF35VE-A1 - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 49 · Sound Level - Heating (dB(A)): 50
· Air Volume - Cooling (Litre/sec): 501.67 · Air Volume - Heating (Litre/sec): 560
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 9.52
· Max. Pipe Length (m): 20 · Max. Pipe Height (m): 12
· Dimensions (WxDxH, mm): 800 x 285 x 550 · Weight: 30 kg
