Discontinued product

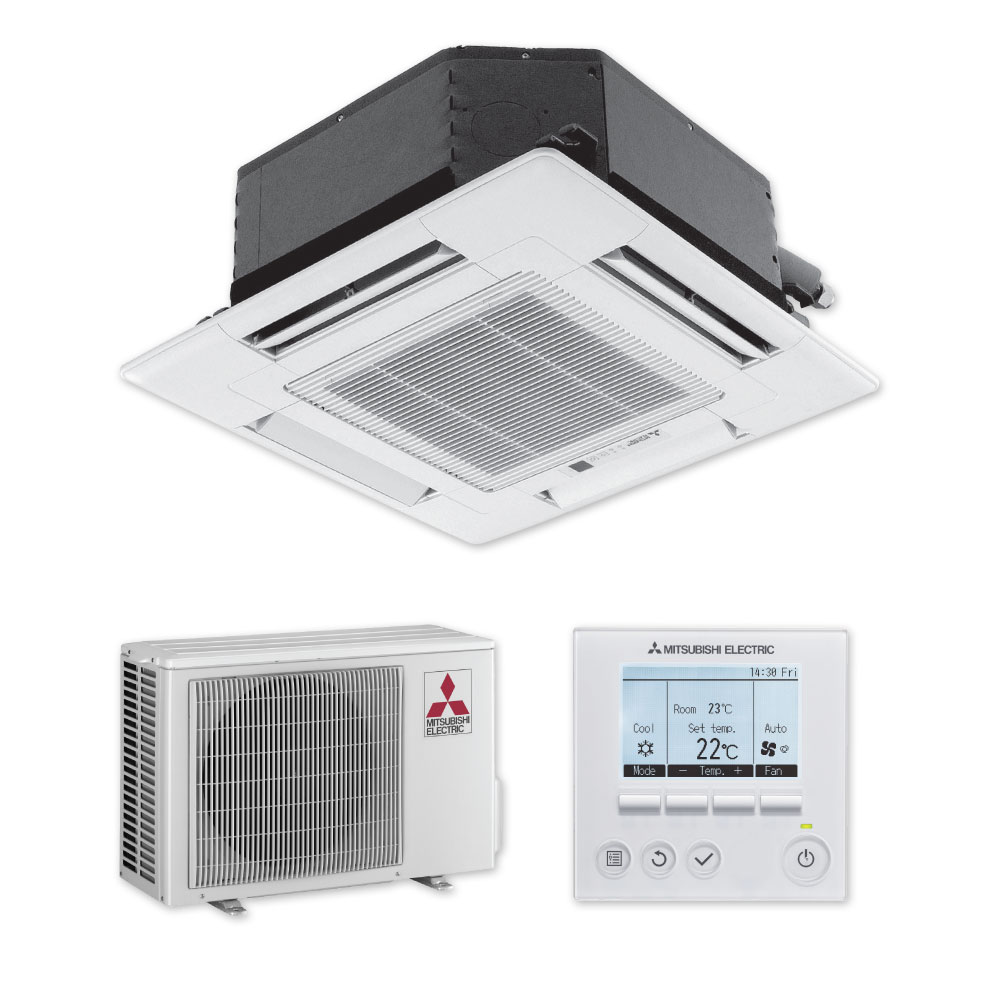

Classic SLZ25 Cassette Heat Pump

SLZ-KA25VAQ

Our compact and ultra quiet SLZ25 cassette, fits neatly into your ceiling cavity leaving only the grille visible. Its low energy consumption, four way air distribution and versatile control make it ideal if you are looking to heat a smaller room in your home or office. Upgraded with a Deluxe PAR31 wired Controller, with backlit LCD display and user-friendly menus. With the PAR31 you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Discontinued Product
Replacement product available
SLZ-KF25VA3

Features

Compact Design

Our ceiling cassettes are New Zealand’s favourite. With the lightweight unit sitting in your ceiling space, only the grille is visible providing easy, discreet installation into your home or office.

Multi Directional Airflow

With four-way air outlets, our cassettes provide maximum comfort by evenly distributing airflow throughout the area you need to heat or cool.

Air Cleaning Filtration

A built in filter removes dust and contaminants keeping air purified and deodorised. The washable, long-life filter can be used for up to 2,500 hours with simple maintenance.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home, workplace or retail store.

Click here to find out more

Features:

Specifications

SLZ-KA25VAQR1.TH - DC Inverter Compact Cassette

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 2.3 kW · Capacity - Heating: 3.1 kW
· Capacity - Cooling (min. - max.): 0.9 - 3.2 kW · Capacity - Heating (min. - max.): 0.9 - 4.5 kW
· Power Input - Cooling: 0.68kW · Power Input - Heating: 0.85 kW
· Star rating - Cooling: 2.5 · Star rating - Heating: 3.0
· EER / COP: 3.81 / 3.94 · Previous Star rating: 2.5 / 2.5
· AEER / ACOP: 3.64 / 3.81 · Sensible - Cooling: 2 06 kW
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Indoor Sound - Cooling (Low - High, dB(A)): 28 / 31 / 37 · Indoor Sound - Heating (Low - High, dB(A)): 28 / 31 / 37
· Current - Cooling [in+outdoor] (Rated / Max.): 3.4 / 8.16 A · Current - Heating [in+outdoor] (Rated / Max.): 4.0 / 8.16 A
· Air Volume - Cooling (High, Litre/sec): 167 · Air Volume - Heating (High, Litre/sec): 167
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. Pipe Length (m): 20
· Max. Pipe Height (m): 12 · Power Supply: 230V +/- 10% / Single Phase / 50 Hz
· Panel Dimensions (WxDxH, mm): 650 x 650 x 20 · Panel Weight: 3 kg
· Dimensions (WxDxH, mm): 570 x 570 x 235 · Weight: 16.5 kg

SUZ-KA25VAD.TH-A - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 46 · Sound Level - Heating (dB(A)): 46
· Air Volume - Cooling (Litre/sec): 568 · Air Volume - Heating (Litre/sec): 534
· Power Supply: 240V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 9.52
· Max. Pipe Length (m): 20 · Max. Pipe Height (m): 12
· Dimensions (WxDxH, mm): 800 x 285 x 550 · Weight: 30 kg
