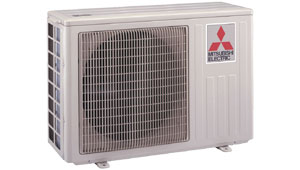

Fixed Speed Outdoor Unit
MUH-A18WV
Outdoor unit for MSH-A18WV. (WxDxH, mm): 850 x 290 x 605. Weight: 47kg.
Discontinued product
Discontinued Product
Specifications
| · | Function: Cooling/Heating | · | Type: Single Split, Fixed Speed |
| · | Capacity - Cooling: 5.1 kW | · | Capacity - Heating: 5.3 kW |
| · | Power Input - Cooling: 1.75 kW | · | Power Input - Heating: 1.60 kW |
| · | COP / Star rating - Cooling: 2.91 / 4.0 | · | COP / Star rating - Heating: 3.31 / 4.0 |
| · | Sound Level - Cooling (dB(A)): 52 | · | Sound Level - Heating (dB(A)): 52 |
| · | Current - Cooling [In+Outdoor] (Rated / Max.): 8.09 / 11 A | · | Current - Heating [In+Outdoor] (Rated / Max.): 7.48 / 11 A |
| · | Air Volume - Cooling (Litre/sec): 610 | · | Air Volume - Heating (Litre/sec): 610 |
| · | Operation Range - Cooling: +21 / +43°C | · | Operation Range - Heating: -10 / +24°C |
| · | Refrigerant: R410A | · | Liquid Pipe Size (OD, mm): 6.35 |
| · | Gas Pipe Size (OD, mm): 12.7 | · | Max. Pipe Length (m): 25 |
| · | Max. Pipe Height (m): 10 | · | Power Supply: 230V +/- 10% / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 850 x 290 x 605 | · | Weight: 47 kg |
