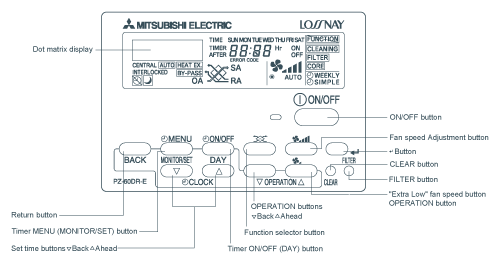

PZ-60DR-E Lossnay remote controller. Wired 7 Day Timer allows you to program up to 8 separate Start/Stop patterns per day over a 7 day period. Controls 1 to 15 LGH~RX5-E lossnay units. This controller is not required if a P-Series unit is installed with a wired controller (ie. PAR-21).
A new remote controller for the RX5 series is now available. In addition to boosting the energy conservation performance of the main unit, the remote controller features a variety of new functions which also pursue additional energy conservation.
Functions that were set using Dip-Switch on the LOSSNAY main unit can now be configured as needed using the PZ-60DR-E remote controller.
The LCD display provides much more information, making it easy to check maintenance indications, operation status display, and explanations required when configuring settings.
Air volume level can be set hourly (max 8 times) and weekly. You can pre-set air volume according to the predictable requirement so that Lossnay can automatically operate at only necessary air-speed at the specified time period, which saves power consumption while maintaining the indoor air quality. Besides, once the weekly timer has been set, no switching on – off is required.
In addition to the conventional Extra High, High, and Low modes, an Extra Low* mode is added to provide a more dynamic range of air volume settings and versatility in a variety of installation environments, yielding much better energy conservation. Using a simplified timer function, it switches to Extra Low operation when the operation stop button is activated and it is accordingly possible to implement 24-hour energy conservation ventilation.
* Extra-Low mode not included in the LGH-150RX5 and 200RX5 units.
