14.0kW Packaged Hydrobox System

PUHZ-HW140VHA2-H

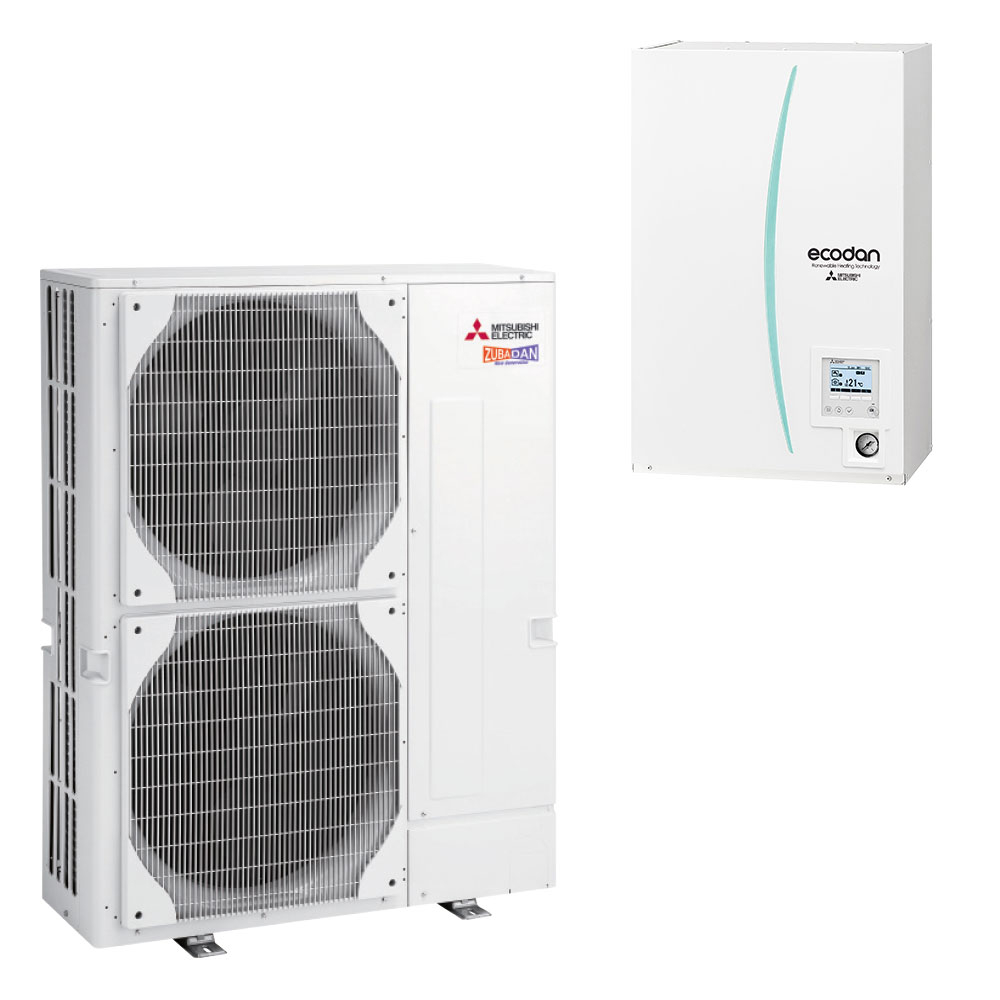

With all the heating and cooling ability of the Ecodan Cylinders, the Ecodan Hydrobox is a small form factor heating and cooling powerhouse. The hydrobox can be connected to underfloor, fan coils and/or radiators and provide a whole home central heating solution. For users looking for domestic hot water, the hydrobox can be connected to a heat pump compatible coiled cylinder, while still providing whole home heating. At a similar size to a conventional gas hot water heating system, the small form factor hydrobox is a highly adaptable solution for retrofit or new builds. The system comprises of the 14.0kW PUHZ-HW140VHA2-BS outdoor packaged unit, the EHPX-VM2C hydrobox and FTC5 controller.

Heating Capacity14.0 kW
Select a Size - R32 Refrigerant
Select a Size - R410A Refrigerant

Features

Key Features

  • Self-contained unit, only requiring water and electric connections
  • No need for gas supply, flues or ventilation
  • Single phase power supply with a low starting current
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -25ºC with Zubadan
  • Optional 2-Zone Energy Efficient Space Heating Control
  • Energy monitoring as standard
Domestic Applications
  • Heating and hot water
  • The vast majority of NZ homes
Commercial Applications
  • Small retail outlets
  • Health clinics
  • Public sector and commercial buildings

Zubadan Inverter Technology

New generation Zubadan Inverter Technology provides powerful heating in cold regions where heat pump performance can diminish. With Zubadan, rated heating capacity is maintained even in outdoor temperatures as low as -15°C, with guaranteed heating operation at -25°C. Zubadan guarantees a warm, comfortable home when you need it most. Furthermore, Zubadan can provide even faster tank heat-up times in low ambient temperatures.

FTC5 Controller – With Energy Monitoring

The Mitsubishi Electric Fifth Generation Controller (FTC5) includes intelligent room temperature control as standard. This together with advanced weather compensation ensures the system delivers efficient, comfortable heating regardless of the season. FTC5 now also includes energy monitoring, showing consumed and produced energy.

2-Zone Control Allows you to Simultaneously Control Two Different Temperature Zones

Using Ecodan, it is possible to control two different flow temperatures, thereby managing two different heating load requirements. The system can adjust and maintain two flow temperatures when different temperatures are required for different rooms; for example, controlling a flow temperature of 40°C for the bedroom radiators and another flow temperature of 30°C for the living room underfloor heating.

Specifications

PUHZ-HW140VHA2R7-BS - 14kW Ecodan Packaged Air Source Hot Water Heat Pump

Function: Hot Water Heating
Type: Packaged Air Source Heat Pump
Refrigerant Type: R410A
HEATING (A7/W35)*¹
Capacity [kW]: 14.0
Power Input [kW]: 3.29
COP: 4.26
HEATING (A2/W35)*²
Capacity [kW]: 14.00
Power Input [kW]: 4.50
COP: 3.11
COOLING (A35/W7)*3
Capacity [kW]: 12.5
Power Input [kW]: 5.00
EER: 2.50
COOLING (A35/W18)*4
Capacity [kW]: 12.5
Power Input [kW]: 3.47
EER: 3.60
OPERATING RANGE
Heating Operation Ambient Temperature [°C DB]: -25 ~ +21
Cooling Operation Ambient Temperature [°C DB]: -5 ~ +46
DHW Operation Ambient Temperature [°C DB]: -25 ~ +35
OPERATING CHARACTERISTICS
Sound Pressure Level at 1m [dBA]*¹: 53
Flow Rate [L/min]: 17.9 - 40.1
ELECTRICAL DATA
Power Supply: 230V / single Phase / 50 Hz
Maximum Current / Fuse Rating [A]: 35.0 / 40
GENERAL
Water Pipe Size: 1" BSP Parallel Thread. ISO 228/1-G1B
Dimensions (WxDxH) [mm]: 1020 x 330+30*5 x 1350
Weight [kg]: 134
Notes

*1 Under normal heating conditions at outdoor temp: 7°CDB / 6°CDB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN14511.
*2 Under normal heating conditions at outdoor temp: 2°CDB / 1°CDB, outlet water temp 35°C, inlet water temp 30°C as t

EHPX-VM2CR3 - FTC5 Packaged Hydrobox for R410A Units

Type: FTC6 Packaged Hydrobox for R32 Units
Operating Ambient Temperature: 0 ~ +35°C (RH<80%)
Sound Power Level [dBA]: 28
WATER DATA
Water Pipe Connections [mm]: 28mm Compression
Primary Pump: Grundfos UPM2K 15 - 75 130
Primary Expansion Vessel [L]: 10
Charge Pressure [MPa (Bar)]: 0.1 (1)
Target Temperature Range
Space Heating Flow Temperature [°C]: 25 - 60
Space Heating Room Temperature [°C]: 10 - 30
WATER SAFTEY DEVICES - Water Circuit
Control Thermistor [°C]: 1 - 80
Pressure Relief Valve [MPa (Bar)]: 0.3 (3)
Flow Sensor (Minimum Flow 5.0L/min): Supplied
WATER SAFTEY DEVICES - Booster Heater
Manual Reset Thermostat [°C]: 90
Thermal Cut-out (for dry run prevention) [°C]: 121
Pressures
ELECTRICAL DATA - Control Board
Power Supply: 230-240V / Single Phase / 50 Hz
Current [A]: 1.95
Breaker [A]: 10
ELECTRICAL DATA - Booster Heat
Power Supply: 230-240V / Single Phase / 50 Hz
Capacity [kW]: 2
Current [A]: 9
Breaker [A]: 16
GENERAL
Dimensions (WxDxH) [mm]: 530 x 360 x 800
Weight (Empty / Full) [kg]: 37 / 42
Notes

*1 Depending on the ambient conditions, unit may not reach the set temperature.

Downloads

Support

Warranty

  • Mitsubishi Electric Ecodan Hot Water Heat Pumps come with a 5 Year Parts and Labour Warranty.

    Warranty commences from the date the system is purchased and installed. The installer must also fill out and return a BDT commissioning form applicable to the original purchaser. The installer must also have completed the Ecodan training course. Equipment defects covered by this warranty will be repaired or replaced at the discretion of BDT without cost to the owner for parts or direct repair labour. A BDT authorised repair company shall carry out the repair or replacement during normal business hours.

    Any Mitsubishi Electric Ecodan parts or equipment replaced under the warranty will be warranted in accordance with the provisions of this warranty for the remainder of the original warranty period or 12 months from the completion of the repair, whichever is the greater.

    Except where inconsistent with the owner’s statutory rights and the rights given by this warranty, all other warranties and all liability of BDT for any loss or damage direct and consequential is expressly excluded.

    For full details view warranty terms and conditions.pdf (128 KB)
