PWFY-P~AU Series

12.5~25kW Hot Water Modules. Can be installed in conjunction with City Multi VRF air conditioning. An intermediate water to water heat exchanger is required.

Models

PWFY-P100VM-E-AU

11.2kW / 12.5kW
40°C Hot Water at
-20°C ambient temperature

PWFY-P200VM-E-AU

22.4kW / 25.0kW
40°C Hot Water at
-20°C ambient temperature

Note: Above capacity ratings are all nominal rated.

Features

  • Reliable, year-round water heating
  • Inverter driven for maximum energy efficiency
  • Water temperatures up to 40°C
  • Operation at outdoor temperatures as low as -20°C
  • Environmentally friendly R410a refrigerant
  • Easy to use LCD Wall Controller with 7 Day Timer
  • Cooling mode selectable
  • Heat recovery from air conditioning system in cooling mode on R2 Systems
  • Modular design allows flexibility to create very large systems

CITY MULTI Hot Water Module

VRF Water Heating Units are the latest technological breakthrough from the Mitsubishi Electric City Multi Range, with the ability to heat or cool water more efficiently than ever before. The PWFY-P~AU indoor modules can be installed in conjunction with standard City Multi VRF air conditioning indoor units, creating huge potential for heat recovery.

Available in two sizes: PWFY-P100VM-E-AU (12.5kW heating / 11.2kW cooling) and PWFY-P200VM-E-AU (25.0kW heating / 22.4kW cooling) which are modular to allow creation of larger solutions. Suitable applications for pre-heating sanitary water (through energy recovery), swimming pools, underfloor heating, low temperature hot water for fan coil units and convectors, hydroponics, aquaculture and water chilling.

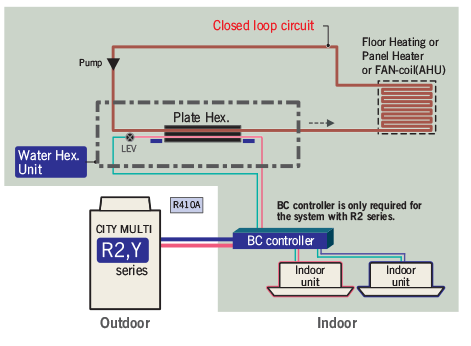

The AU Series water heating and cooling unit utilise a 316 stainless steel plate heat exchanger with the ability to sense flow or return water temperature with a dip-switch setting. PWFY–P~AU units can be connected to either City Multi Y or R2 Series outdoor units (The smallest VRF hot water system is therefore 25kW of heating). Inputs: ON/OFF, Mode, Set Temp, Pump Interface. Outputs: ON/OFF, Error, Defrost.

AU Series Water Heating and Cooling for Y/R2

Additional requirements for Spa and Swimming Pool use

An intermediate water to water titanium type heat exchanger is required.

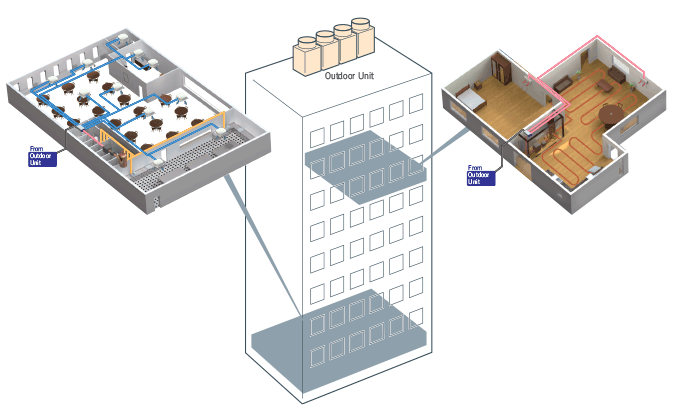

CITY MULTI VRF Commercial Design

Mitsubishi Electric’s CITY MULTI Series has the flexibility to adapt efficiently to any building requirement. A wide line up of indoor units and simple piping systems enable an easy fit to even the most complex configurations. And both R2 and Y-Series systems can be simply operated through a central controller. With it’s flexible system architecture, easy operation and energy saving technology CITY MULTI offers an ideal blend of comfort, efficiency and economy. Please contact the Mitsubishi Electric City Multi representative in your area for a unique design solution.

Selection Guide

Use this guide to estimate your heating requirements, however units should not be purchased without advice from your heating or pool specialist. Every application is as individual as its owner. An incorrect selection may lead to unnecessary power consumption or a system with insufficient heating capability.

Spa Pools

We have a new Titanium Coil/PVC Shell heat exchanger to effectively heat where aggressive chemical treatment is present. This is matched to one of our PUHZ-RP Hot Water Heat Pump units. Alternatively use our PUHZ-W50 with an intermediate water to water heat exchanger.

Swimming Pools

Hot Water Heat Pumps enable outdoor swimming pools to be heated to a comfortable temperature to extend their use year round. Indoor pools also benefit from heating because they don’t receive the same solar gain as outdoor pools in the summer, and can be heated during winter to provide year round swimming. The heat pump size required depends on environmental aspects of the pool, including location and construction, temperature of the pool, and the air temperature. The most important factor is the pool water surface area as this is where heat is lost through evaporation. Installing a pool cover is the best way to retain this heat.

Due to the large number of variables, a simple calculation of heat pump capacity is not always possible. We recommend you check our website or contact a competent installer to have your pool heating requirement carefully assessed.

Warranty

Mitsubishi Electric Hot Water Heat Pumps come with a 1 year parts, labour and compressor warranty. Alfa Laval and Vaportec Heat Exchangers come with a 1 year parts warranty. Warranty does not cover areas with hard water unless a water softener is fitted. Warranty does not cover heat exchangers used in pool applications where the water pH and chlorine levels fall outside those advised in the technical information. Warranty conditions apply. Please be aware of these conditions prior to purchasing. For full details view warranty terms and conditions

PWFY-P~AU Series
