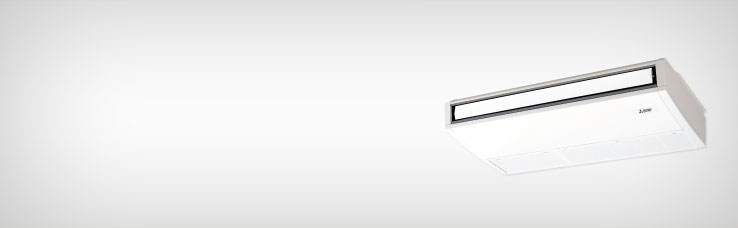

PCA Ceiling Suspended Heat Pumps

PCA Series high performance units are designed for style and efficiency. A stylish indoor unit design and airflow settings for both high and low-ceiling interiors expand installation possibilities. With four speed settings and auto air-speed adjustment, PCA Series units provide energy efficient comfort no matter the season.

Features of this Series

​​

The next generation of R32 Mr Slim commercial range* is here!

Our extended Mr Slim Range now offers a wide selection of market leading R32 Solutions in addition to a base range of R410A models. The new R32 range additions feature the latest in super-efficient and more environmentally friendly R32 refrigerant, enabling the integration of more cost savings into any HVAC design. Featuring a GWP of 675, R32 refrigerant is highly energy efficient and with a volumetric capacity that is around 20% higher compared to R410A, system refrigerant volumes are significantly lower. Furthermore the new R32 models blend a host of outstanding features with a premium quality, sophisticated design. Offering high efficiencies, advanced control options and extended pipe runs, the range is extremely flexible and cost effective.

Benefits of R32 compared to R410A

  • 66% lower GWP of 675
  • More environmentally friendly
  • 20% less refrigerant volume requirement
  • Overall higher systems efficiency
  • Easy to handle, reuse and recycle

* When connected to PUZ-ZM71 to 140VKA R32 Outdoor Units

30Pa External Static Pressure*

A high static outdoor fan motor option of 30 Pa is available on R32 P-Series outdoor units. This will enable the outdoor unit to be installed on balconies in high-rise buildings or spaces near louvres.

* When connected to PUZ-ZM71 to 140VKA R32 Outdoor Units

Replace technology has been incorporated into the R32 Mr Slim P-Series*

Replacing an R22 or an R410a system with an R32 equivalent system while retaining the existing pipe work can be easily achieved while keeping the product warranty intact. HAB oil and scroll compressor technology improvements allows this unique feature to apply to this product.

* When connected to PUZ-ZM71 to 140VKA R32 Outdoor Units

Stylish Design

Sharp, clean lines make this unit blend in more easily with your ceiling, providing low-profile heating or cooling.

Automatic Air Speed Adjustment

In addition to the conventional 4-speed setting, our suspended units are now equipped with an automatic air-speed adjustment mode. This setting automatically adjusts the air speed to match the room environment. At the start of heating or cooling operation, the airflow is set to high-speed to quickly heat or cool the room. When the room temperature reaches your desired setting, the airflow speed is decreased automatically for stable comfortable heating or cooling operation.

Fresh Air Intake Option

Units are equipped with an opening that enables the induction of fresh outside air.

High and Low Ceiling Modes

Units are equipped with high and low ceiling operation modes that make it possible to switch the airflow volume to match room height. The ability to choose the optimum airflow volume makes it possible to optimise the breezy sensation felt throughout the room.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.
Click here to find out more

Wi-Fi Control Upgrade

With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.

Read more and try a demonstration

Ceiling Suspended
