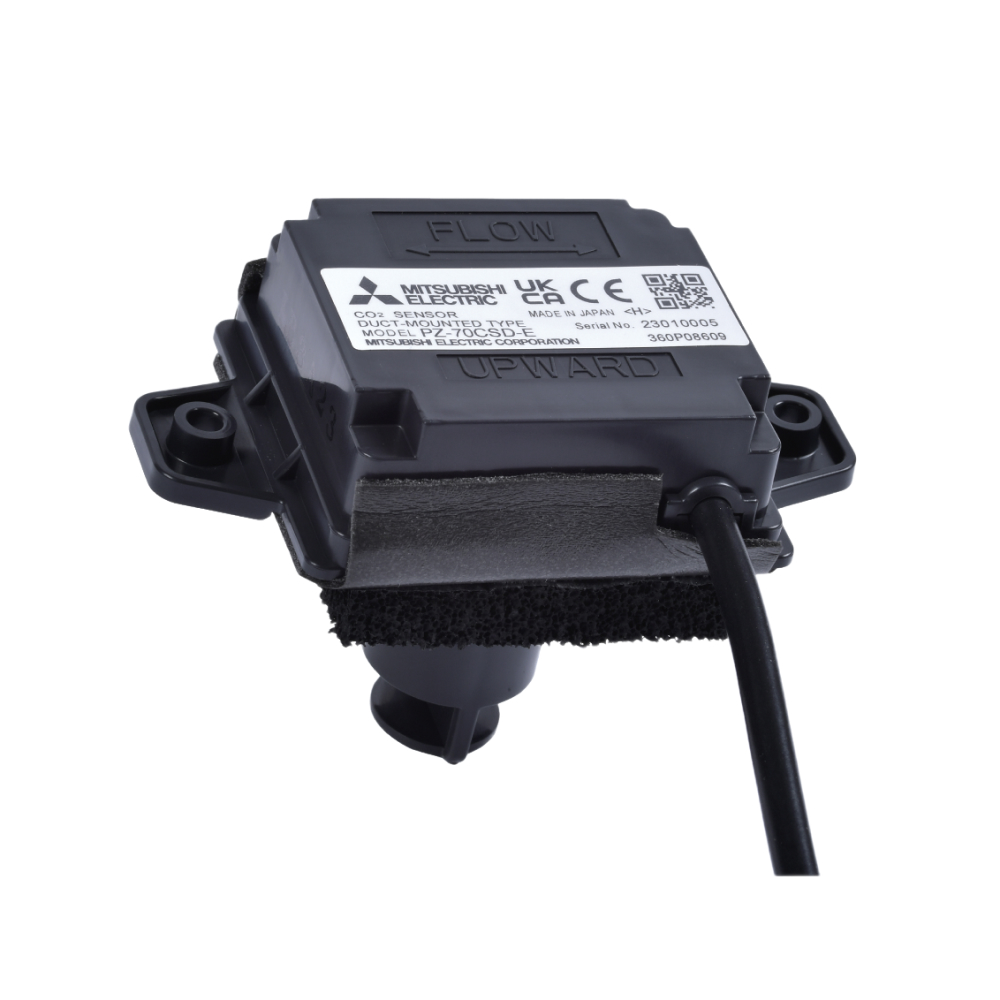

Ducted Mounted CO2 Sensor

PZ-70CSD-E

The PZ-70CSD-E is an optional Ducted Mounted CO2 Sensor. Powered directly from the Lossnay unit, the sensor is easy to install and ensures that the indoor air quality of a room is kept safe and fresh by regularly measuring the CO2 levels and adjusting airflow to remove stale air and bring in fresh air, in an energy efficient manner.

$ POA
Please consult a specialist

Features

The Mitsubishi Electric PZ-70CSD-E CO2 Sensor has been designed to work with the LGH-RVX3 and LGH-RVS range of Lossnay units.

The sensor allows the indoor air quality of a room to be kept safe and fresh by regularly measuring the CO2 levels and adjusting airflows accordingly, ensuring that stale air is removed from the space and fresh air is introduced in an energy efficient manner.

Powered directly from the Lossnay unit's power supply, the CO2 sensor is simple to install and is commissioned digitally on the PZ-62DR-E Lossnay controller for tailored monitoring and control.

  • Plug and play solution for ease of installation
  • Automatic 16-step control offers seamless change across the fan range for consistent and effective ventilation, and improved indoor air quality
  • Powered by the Lossnay unit therefore no requirement for additional power supply
  • Digital commissioning of setpoints and thresholds for user-friendly, tailored control

Auto Fan Speed

Setting the fan speed to "Auto" will start automatic fan speed control using the CO2 sensor.

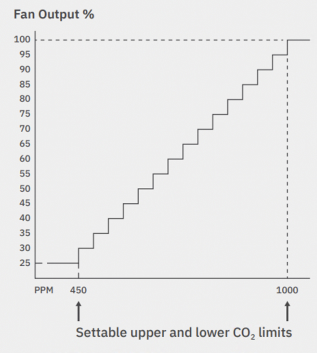

Fan Output

The lower and upper limit CO2 levels can be set between 300ppm and 2000ppm at 50ppm increments. The difference between the lower and upper limit must be at least 300ppm.
