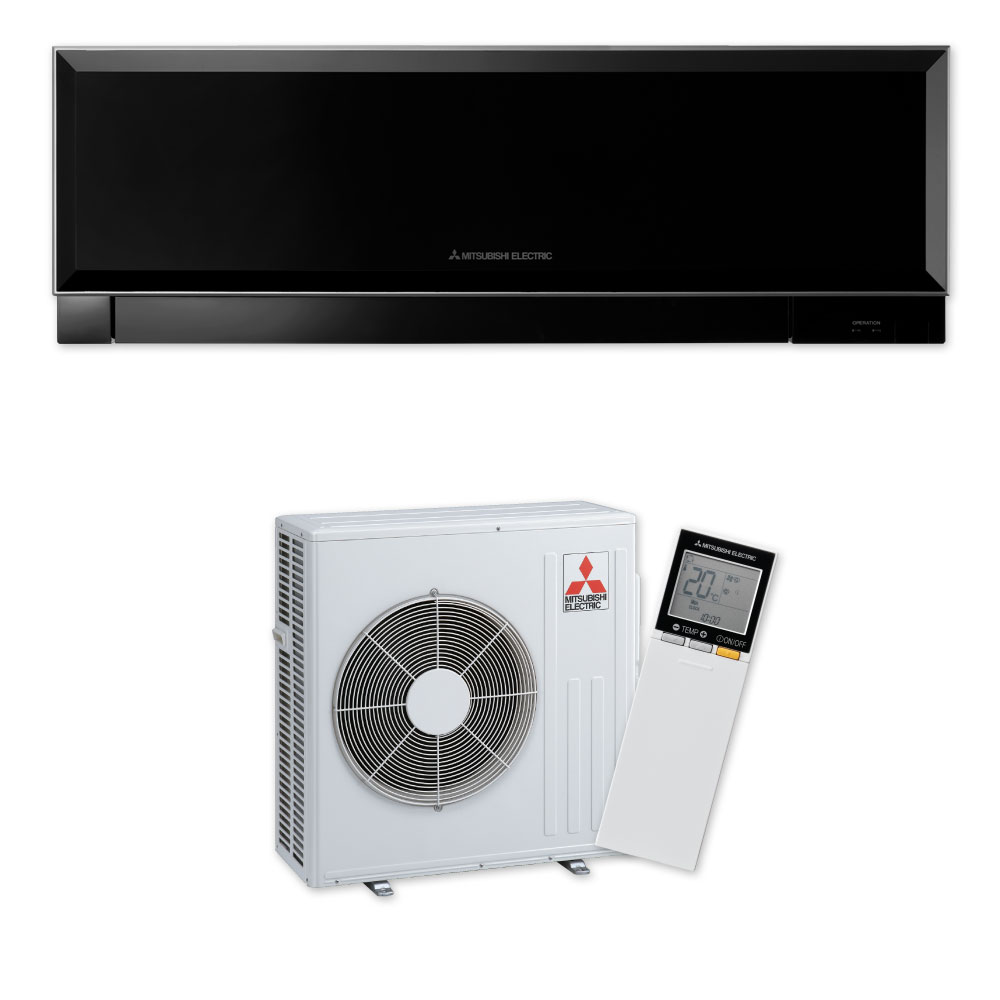

Designer EF50 High Wall Heat Pump

MSZ-EF50VEB

The Black Diamond, our gloss black heat pump features a sleek flat-panel design and slim profile. A perfect addition to any home, easily matching living room electronics and darker décor. The full Designer Series range comes with a 7 Day Controller, providing you both style and functionality.

Discontinued Product
Replacement product available
MSZ-EF50VE2B

Features

Stylish Flat Panel Design

Our Designer Series wall mounted units are perfectly streamlined. Slimline with silver-bevelled edges and flat panel façade, they are designed to suit even the most discerning taste.

7-Day Programmable Hand Held Controller

Advanced infrared controller allowing the programming of up to four settings (per 24 hour period) including start/stop operation and temperature settings over a 7 day period. This eliminates the need to reset the timer daily. You can program your heat pump to start up before you wake or return home and regulate your energy usage without compromising on comfort.

Energy Efficiency

Combining efficient technology with unique energy saving features our Designer Series systems will stylishly contribute to reduced energy consumption in your home or office.

Super Quiet Operation

With an advanced “Silent Mode” fan setting, the range starts from a super quiet 21dBA. Allowing you to enjoy quiet, yet powerful performance.

Superior Filtration

Equipped with a nano-platinum filter which is both antibacterial and deodorising, the filter ensures increased dust catchment and superior air cleaning for your home.

Optional Wi-Fi Control Upgrade

With the addition of award winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.

Read more and try a demonstration

Specifications

MSZ-EF50VEB-A1 - DC Inverter Black High Wall

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 5.0 kW · Capacity - Heating: 5.8 kW
· Capacity - Cooling (min. - max.): 1.4 - 5.4 kW · Capacity - Heating (min. - max.): 1.6 - 7.5 kW
· Power input - Cooling: 1.56 kW · Power input - Heating: 1.57 kW
· Star rating - Cooling: 1.5 · Star rating - Heating: 2.5
· EER / COP: 3.11 / 3.55 · AEER / ACOP: 3.1 / 3.5
· Previous Star rating: N/A · Sensible - Cooling: 3.35 kW
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (Quiet - Super High, dB(A)): 30 / 33 / 36 / 40 / 43 · Sound Level - Heating (Quiet - Super High, dB(A)): 30 / 33 / 37 / 43 / 49
· Current - Cooling [in] (Rated / Max.): 0.18A · Current - Heating [in] (Rated / Max.): 0.32A
· Air volume - Cooling (Super High, Litre/sec): 183.33 · Air volume - Heating (Super High, Litre/sec): 220
· Refrigerant: R410A · Liquid pipe size (OD, mm): 6.35
· Gas pipe size (OD, mm): 12.7 · Max. pipe length (m): 30
· Max. pipe height (m): 15 · Power supply: 230V +/- 10% / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 895 x 195 x 299 · Weight: 11.5 kg

MUZ-EF50VE-A1 - DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, Standard Inverter
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (dB(A)): 52 · Sound Level - Heating (dB(A)): 52
· Air volume - Cooling (Litre/sec): 796.67 · Air volume - Heating (Litre/sec): 771.67
· Power supply: 240V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid pipe size (OD, mm): 6.35 · Gas pipe size (OD, mm): 12.7
· Max. pipe length (m): 30 · Max. pipe height (m): 15
· Dimensions (WxDxH, mm): 840 x 330 x 880 · Weight: 54 kg
