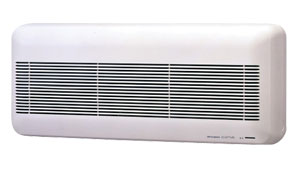

Lossnay Fresh Air (Energy Recovery Systems)

The Ventilation System for Enhanced Air Quality which provides Free Heating or Cooling.

Designed to save you money!

• Combine with Lossnay Ventilation System Enhanced Air Quality.
• Unified Control System Allows Greater Design Freedom.

Heat-Exchange Efficiency Obtainable Only with Lossnay

The secret to the unmatched comfort provided by Lossnay core is the cross-flow, plate-fin structure of the heat-exchange unit. A diaphragm made of a specially processed paper fully separates inducted and exhausted air supplies, ensuring that only fresh air is introduced to the indoor environment.

The superior heat-transfer and moisture permeability of the special paper assure highly effective total heat exchange (temperature and humidity) when inducted and exhausted air supplies cross in the Lossnay core.

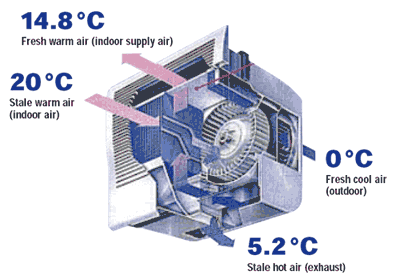

Operation in Winter:

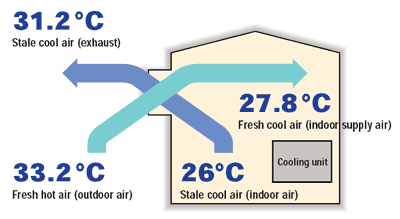

Operation in Summer:

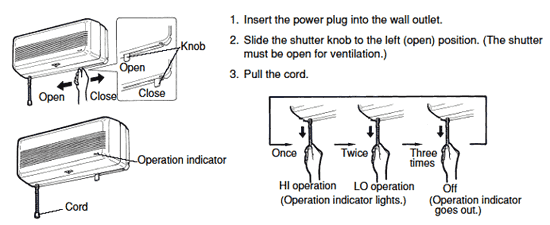

How to operate:

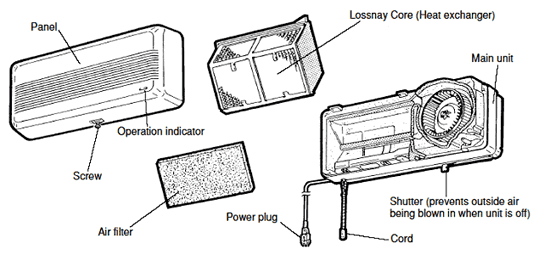

Name of parts:

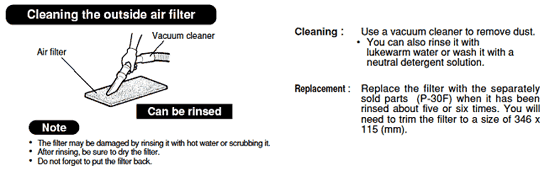

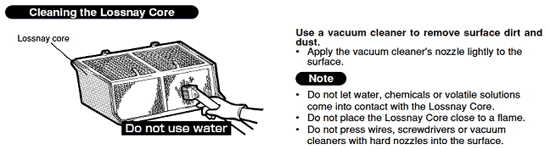

Maintenance:
