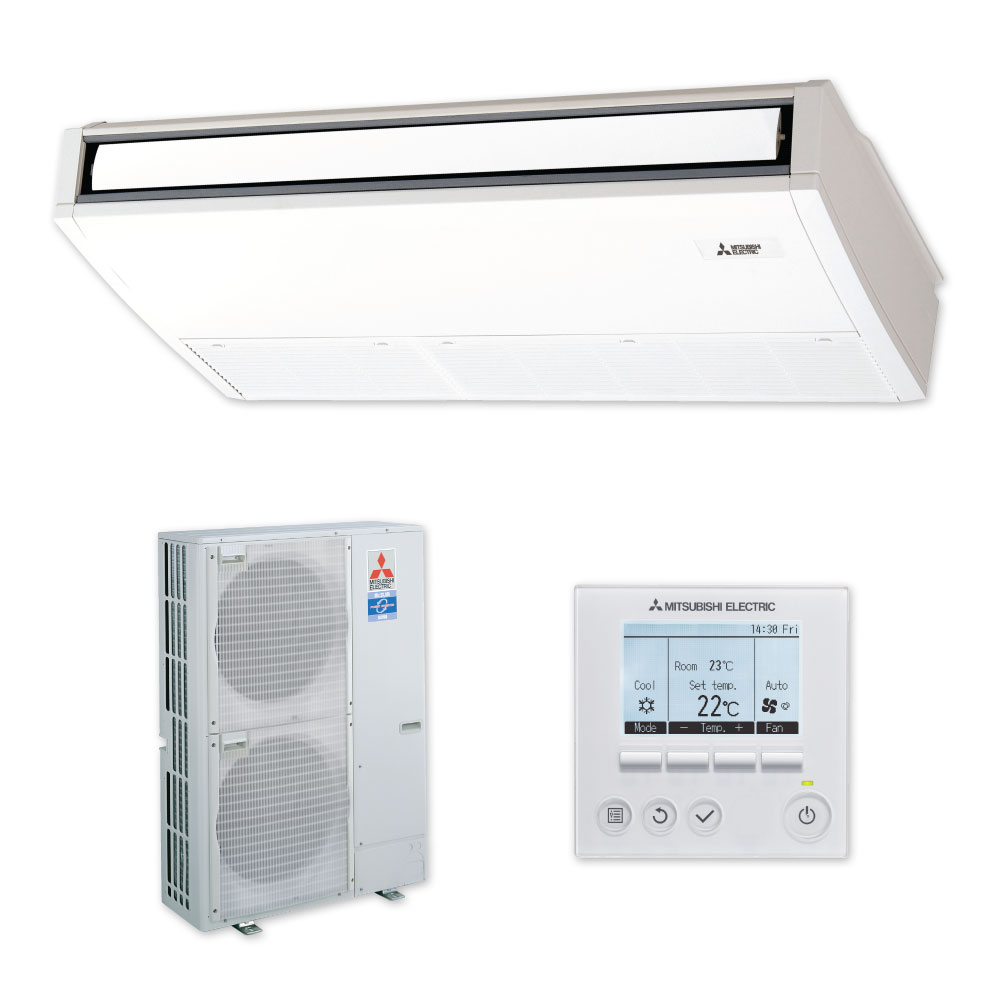

Suspended PCA140 Heat Pump

Large Room System // PCA-RP140KAQ

Our Suspended PCA140 high performance heat pump is designed for style and efficiency. With four speed settings and auto air-speed adjustment it is ideal for mid-sized areas. Upgraded with a Deluxe PAR wired Controller, with backlit LCD display and user-friendly menus. With the PAR Controller you are able to precisely control power consumption and temperature, setting up to eight patterns per day.

Cooling Capacity14.0 kW
Heating Capacity16.0 kW

Features

Stylish Design

Sharp, clean lines make this unit blend in more easily with your ceiling, providing low-profile heating or cooling.

Automatic Air Speed Adjustment

In addition to the conventional 4-speed setting, our suspended units are now equipped with an automatic air-speed adjustment mode. This setting automatically adjusts the air speed to match the room environment. At the start of heating or cooling operation, the airflow is set to high-speed to quickly heat or cool the room. When the room temperature reaches your desired setting, the airflow speed is decreased automatically for stable comfortable heating or cooling operation.

Fresh Air Intake Option

Units are equipped with an opening that enables the induction of fresh outside air.

Deluxe PAR Weekly Controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail store.

Click here to find out more

Specifications

PCA-RP140KAQR2 - Power Inverter Ceiling Suspended

· Function: Cooling/Heating · Type: Single Split, Power Inverter
· Capacity - Cooling: 14.0 kW · Capacity - Heating: 16.0 kW
· Capacity - Cooling (min. - max.): 6.2 - 15.3 kW · Capacity - Heating (min. - max.): 5.0 - 18.0 kW
· Power Input - Cooling: 4.36 kW · Power Input - Heating: 4.43 kW
· EER / COP: 3.21 / 3.61
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Airflow (Lo-Mi1-Mi2-Hi, Litre/sec): 400 - 433 - 483 - 533 · Sound Level (Lo-Mi1-Mi2-Hi, dB(A)): 41 - 43 - 45 - 48
· Current Indoor - Cooling (Running / Starting): 0.9 / 2.20 A · Current Indoor - Heating (Running / Starting): 0.9 / 2.20 A
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 75 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1620 x 680 x 230 · Weight: 39 kg
· [*]: -15°C in cooling when using an optional outdoor air outlet guide PAC-SG59SG-E.

PUHZ-RP140VKA2R1-A - DC Deluxe Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split or Multi Split, Power Inverter
· Multi-Split System Compatible: Yes (50:50) · Number of indoor units: 1, 2 or 3
· Capacity - Cooling: 13.0 kW · Capacity - Heating: 16.0 kW
· Capacity - Cooling (min. - max.): 6.2 - 15.3 kW · Capacity - Heating (min. - max.): 5.7 - 18.0 kW
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Sound Level - Cooling (dB(A)): 50 · Sound Level - Heating (dB(A)): 52
· Airflow (Litre/sec): 2000 · Current - Cooling Outdoor (Rated / Max.): TBA / 28 A
· Current - Heating Outdoor (Rated / Max.): TBA / 28 A · Power Supply: 230V / Single Phase / 50 Hz
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 9.52
· Gas Pipe Size (OD, mm): 15.88 · Max. Pipe Length (m): 75
· Max. Pipe Height (m): 30 · Dimensions (WxDxH, mm): 1050 x 330(+30) x 1338
· Weight: 120 kg · [*]: -15°C in cooling when using an optional outdoor Air Protect Guide PAC-SH95AG-E.

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

This air outlet guide is used to force air vertically out of the outdoor unit, can be used to prevent the outdoor unit from short cycling the exhaust air. It also enables the outdoor unit to be mounted closer to a wall or other outdoor units and enables them to operate at -15°C in cooling mode.
