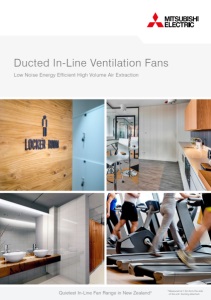

Quietest In-Line Fan Range in New Zealand* *Measured at 1.5m from the side of the unit: Ducting attached. Low Noise Energy Efficient High Volume Air Extraction Ducted In-Line Ventilation Fans
Why Ventilate? Buildings are becoming more and more airtight, therefore good ventilation is a crucial factor to ensure the indoor air quality is at an acceptable standard – Ignored, this will allow for the build-up of airborne pollutants including; odours, bacteria, dust and harmful gases. An unventilated dwelling can lead to occupant irritation, discomfort and potentially health threatening issues. Quietest In-line Fan Range in NZ!*1 - High Airflow with Low Noise The advanced air duct design allows air to be distributed evenly either side of the fan and in doing so reduces the noise of the unit. The in-line fan can maintain a high air flow rate while operating down to a low 18.5 dBA*2. The in-line fan sits between ductwork, allowing the unit to be installed away from the extraction point, decreasing noise heard by the occupant, ideal for environments that are noise sensitive such as meeting rooms, offices, libraries and living rooms, or when there is limited space above the extraction point. Versatile and Sturdy Design Equipped with adjustable mounting brackets and removable duct spigots these make for a convenient and versatile install. The sturdy design gives options for both roof cavity and ceiling exposed mounting. Heat Transfer The in-line fan can also be utilised as a heat transfer system. These systems work by utilising excess heat created from the main heating source (heaters, fireplaces) and distributing that heat to desired rooms and or cooler areas of the home. A heat transfer system creates a more even and comfortable temperature throughout the home and reduces the need for additional heating sources throughout the home. Operating down to as low as 18.5 dBA*2 and tucked away in the roof cavity the system is virtually silent and out of sight with only the grille visible. Please note, we do not recommend installing a heat transfer system if the heating source is a heat pump. Sturdy, very quiet and reliable, the Mitsubishi Electric range of Centrifugal In-Line Fans are the ideal ventilation solution for a wide range of commercial and domestic applications including living rooms, toilets, changing rooms, meeting rooms, offices, storage areas and heat transfer systems. Low operation noise, high volume air extraction and energy efficient air displacement are the results of the enhanced air duct design engineers have developed for the in-line range. Mitsubishi Electric Ducted In-line Fans *1 Measured at 1.5m from the side of the unit: Ducting attached. *2 V-15ZMW-E 2
Specification Table Model Rated Voltage (V) Frequency Notch (Hz) Rated Current (A) Power Consumption (W) Airflow Rate (l/s / m3/h) Noise (dBA) Van Diameter (mm) Connecting Duct (mm) Weight (kg) V-15ZMW-E 230 50 High 0.11 26 58 / 212 22 Ø 150 Ø 100 6 Low 0.10 18 44 / 160 18.5 V-15ZMWP-E 230 50 High 0.21 47 94 / 340 28 Ø 150 Ø 150 6 Low 0.18 33 79 / 285 25 V-18ZMW-E 230 50 High 0.28 64 143 / 515 32 Ø 180 Ø 150 8.5 Low 0.24 36 105 / 380 27 V-18ZMWP-E 230 50 High 0.47 105 215 / 775 33 Ø 180 Ø 200 9.5 Low 0.46 84 184 / 665 31 Operating Conditions Temperature -15 to 40°C Relative Humidity <90% • High airflow, quiet operation • Adjustable/removable mounting brackets • Two speed selectable • Galvanised steel casing • Removable cover for easy maintenance • Operating range -15 to 40°C / <90% Relative humidity • All models are less than 260mm in height • Quick connect power terminal • Removable duct spigots • Wool glass noise absorption pads*3 • Low power consumption *3 V-18ZMWP-E only Key Features Typical Installation and Dimensions Model A B C D E F G H I J K L V-15ZMW-E 339 299 223 299 340 226 Ø 110 Ø 98 43 234 335 60 V-15ZMWP-E 339 299 223 299 340 226 Ø 160 Ø 142 43 234 335 70 V-18ZMW-E 371 331 255 353 394 255 Ø 160 Ø 142 51 291 389 70 V-18ZMWP-E 435 395 319 395 436 255 Ø 208 Ø 192 51 291 431 85 Dimensions in mm 7 41 C A B 20 11 20 B, D: Mounting bracket pitch C B A D E Access hatch Air-flow direction Rotating direction Mounting bracket L I K L H G F Nameplate Terminal cover Discharge air port J 3
Static Pressure Fan Curve For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 PRINTED JUN 2024 Eco Changes is the Mitsubishi Electric Group’s environmental statement, and expresses the Group’s stance on environmental management. Through a wide range of businesses, we are helping contribute to the realisation of a sustainable society.
