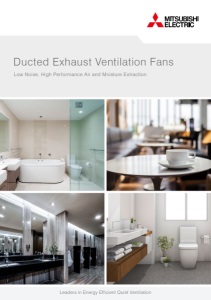

Low Noise, High Performance Air and Moisture Extraction Ducted Exhaust Ventilation Fans Leaders in Energy Efficient Quiet Ventilation
Why Ventilate? Good ventilation, in bathrooms and around the home, is a crucial element in minimising odour, condensation and mould issues that can build up if not managed correctly. Exhaust ventilation should therefore not be overlooked in your home. High Airflow with Low Noise Now you can have it all – super quiet ventilation with super energy efficient, high airflow extraction. The combination of powerful airflow and low-noise operation are achieved through a design that optimises aerodynamic characteristics, and all models are equipped with energy efficient low vibration motors. Furthermore, they are easy to install and clean; making them a popular choice when it comes to ventilation needs. Key Features • Quiet, low vibration operation (from 30dBA*1) • Centrifugal fan with long-life ball bearing motor • Energy efficient for increased power savings • Stylish design that blends well with surroundings • Dual airtight shutters block external noise and outside air • Dual barrier coating (VD-10Z/15Z/15ZP models only) Designed for Ease of Installation • Suitable for both lightweight steel frame ceilings and traditional roof cavities • Low height for placement between floors in multiple level buildings • Stepped pipe guide for simplified duct connection • High static pressure for longer duct runs • Easy access to fan and fan motor - no need to add maintenance access • Snap fit grille • Quick connect terminal *1 VD-15Z4T7-S. Mitsubishi Electric Ducted Exhaust Fans are specifically designed to quickly and efficiently remove moisture and odours in the quietest way possible. They are ideal for areas that are typically exposed to higher levels of moisture such as laundries, bathrooms and toilets. VD Series – High Efficiency Low Noise Ducted Exhaust Fans *1 2
Specification Table Model Current (A) Power (W) Frequency (Hz) RPM Air Volume (l/s)*2 / (m3/h) Noise (dBA) Weight (kg) VD-10Z 0.05 10 50 950 29.2 / 105 32 2.2 VD-15Z 0.06 13 50 725 47.7 / 172 30 3.4 VD-15ZP 0.08 18 50 900 62.5 / 225 36 3.4 VD-18Z 0.16 38 50 620 98.6 / 355 37 5.7 VD-20Z 0.21 46 50 760 127.7 / 460 41 6.5 Air volume at 0Pa. Flow rates are free flow rates (no duct). Please allow for ducting as per the Static Pressure Table. *2 l/s rounded to one decimal place. Dimension Table Model Fan (excluding spigot) Grille Type Duct W (mm) D (mm) H (mm) Type W (mm) D (mm) H (mm) Dia (mm) VD-10Z 171 171 172 Plastic 250 250 20 100 VD-15Z 251 251 200 Plastic 330 330 20 100 VD-15ZP 251 251 200 Plastic 330 330 20 100 VD-18Z 270 270 243 Metal 334 334 15 150 VD-20Z 307 307 243 Metal 380 380 15 150 Plastic Grille VD-15ZP Plastic Grille VD-10Z Plastic Grille VD-15Z Metal Grille VD-18Z/20Z Domestic Room Size Guide*3 Room Type VD-10Z 29l/s VD-15Z 47l/s VD-15ZP 62l/s VD-18Z 98l/s VD-20Z 127l/s Living Room/Open Plan < 50m3 < 85m3 < 110m3 < 175m3 < 250m3 Kitchen < 20m3 < 30m3 < 40m3 < 70m3 < 90m3 Bathroom < 12m3 < 20m3 < 25m3 – – Toilet < 10m3 < 20m3 < 35m3 – – *3 Guide only. Based on ceiling height of 2.4m and fan only installation. Minimum ventilation standards exist for different room types. Ventilation should be designed based on the building requirements and meet the current standards AS/NZS 1668.2 and AS/NZS 4303. Higher ventilation rates may be required for commercial applications.
0 40 80 120 160 200 0 20 40 60 80 100 120 Static pressure (Pa) 0 40 80 120 160 200 0 20 40 60 Static pressure (Pa) AC230V 50 Hz Air Volume (litres/sec) Air Volume (litres/sec) 25 m 25 m 20 m 15 m 10 m 5m 20 m 15 m 10 m 5 m AC230V 50 Hz VD-18Z4T5 VD-20Z4T3 (Ø 100mm) Pipe Length (Ø 150mm) Pipe Length Pipe resistance curve Pipe resistance curve VD-10Z4T5 VD-15Z4T5 VD-15ZP4T5 Duct Exterior Vent Ceiling Vent Typical Installation and Dimensions Static Pressure Fan Curve Ducting diameter: VD-18Z, 20Z use 150mm Ø IP Rating: IPX3 Ducting diameter: VD-10Z, 15Z & 15ZP use 100mm Ø IP Rating: IPX3 For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 PRINTED JUL 2024 Eco Changes is the Mitsubishi Electric Group’s environmental statement, and expresses the Group’s stance on environmental management. Through a wide range of businesses, we are helping contribute to the realisation of a sustainable society.
