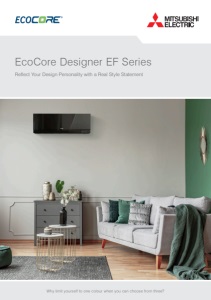

Why limit yourself to one colour when you can choose from three? Reflect Your Design Personality with a Real Style Statement EcoCore Designer EF Series
2 The new EcoCore Designer Series features exceptional energy efficiency and built-in Wi-Fi Control. Elegant and slimline in design, these heat pumps are available in a choice of colours including Rich Black Diamond, Matte Silver or new Pure White – so you can truly reflect your interior design style. Why Limit Yourself to One Colour When You Can Choose from Three? Personalise your home interiors with the new EcoCore Designer Series High Wall Heat Pump. Available in a Rich Black Diamond, Matte Silver or new Pure White finish, now you can mix and match, blend in or stand out – it’s up to you! The Designer Series has been developed specifically with both good design and function in mind. The range features Advanced Filtration, whisper quiet operation and built-in Wi-Fi Control so you’ll always come home to perfect comfort. In addition, more environmentally-friendly and energy efficient R32 refrigerant helps minimise the impact on the environment. The slimline Designer Series is a true achievement in superior performance and looks. It’s an investment in all round comfort that will never go out of style. Energy Efficient EcoCore Inverter Technology Superior energy efficiency is achieved by incorporating a large, high density heat exchanger, an advanced high efficiency fan motor and a next generation inverter compressor that uses more efficient R32 refrigerant. More Environmentally-Friendly R32 Refrigerant With a global warming potential that is 30% lower compared to older refrigerants such as R410A, next generation R32 refrigerant has a much lower environmental impact. Furthermore, zero ozone depleting R32 is easier to reuse and recycle. EcoCore Designer EF Series
3 Dimensions (WxDxH): 885 x 195 x 299mm MSZ-EF25VGKW/B/S Heating Capacity: 3.2 kW | Cooling Capacity: 2.5 kW MSZ-EF35VGKW/B/S Heating Capacity: 4.0 kW | Cooling Capacity: 3.5 kW MSZ-EF42VGKW/B/S Heating Capacity: 5.4 kW | Cooling Capacity: 4.2 kW MSZ-EF50VGKW/B/S Heating Capacity: 5.8 kW | Cooling Capacity: 5.0 kW * EF25 indoor sound level on lowest fan setting in Cooling Mode. from 19dBA* 7-Day Programmable Controller All Designer Series Heat Pumps feature a built-in weekly timer, allowing you to program up to four time and temperature settings for each day of the week. You can now return to comfort without having to manually adjust the temperature. Perfect for anyone with a busy lifestyle, the 7-Day Controller is a great way to regulate your energy usage without compromising on comfort. Wi-Fi Control Built-in! Never Return to a Cold Home Again With built-in Wi-Fi Control you can pre-heat or cool a room no matter where you are. On the way home, running late, coming home early, or even when you're in a different country, with Wi-Fi Control you'll always arrive home to total comfort. Wi-Fi Control is Amazon Alexa and Google Home enabled so you can take your comfort to the next level and enjoy hands-free heat pump control. Quiet Operation The Designer Series indoor units feature Silent Mode. When selected, this fan speed setting provides very quiet operation from as low as 19dBA* making the range ideal for bedrooms. Advanced Nano Platinum Filter The extra-large, washable 3D filter surface incorporates nanometre-sized platinum-ceramic particles designed to effectively collect fine dust particles, deodorise the air and eliminate bacteria at the same time. This level of advanced filtration is better at the collection of dust in comparison to conventional filters. Blue Fin Coating – Built to Withstand the Elements The heat exchanger of the outdoor unit has been treated with Blue Fin AntiCorrosion Treatment, slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas. Optional Plasma Quad Connect for Cleaner, Healthier Air Designed to integrate with your existing Designer Series Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round. NP Award-Winning Timeless Design The Designer Series features a distinctive contemporary, slimline profile and has been awarded the prestigious Red Dot Design Award in recognition for outstanding design quality. The international jury only confers this sought-after seal of quality to products that set themselves apart significantly from comparable products thanks to their excellent design. Advanced Air Filtration Optional
EcoCore Designer EF Series Specifications For more information please visit our website or call our Customer Service Team. www.mitsubishi-electric.co.nz | 0800 784 382 PRINTED Jul 2023 EER = Energy Efficiency Ratio COP = Coefficient of Performance AEER = Annual Energy Efficiency Ratio ACOP = Annual Coefficient of Performance SPL = Sound Pressure Level ¹ SHi = Super High ² Low–SHi = Low–Medium–High–Super High ³ SPL measured under rated operating frequency * Indoor Sound Levels rated at lowest fan speed. † Maximum length is inclusive of height differential i.e. (20/12) means the pipe can be 12m high and 8m across for a total length of 20m. Rating Conditions (AS / NZS 3823). Cooling: Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB Heating: Indoor: 20°C DB Outdoor: 7°C DB, 6°C WB. QUICK GLANCE TYPE High Wall System SERIES EcoCore Designer EF Series MODEL MSZ-EF25 MSZ-EF35 MSZ-EF42 MSZ-EF50 REFRIGERANT R32 INDOOR UNIT MSZ-EF25VGKW/B/S MSZ-EF35VGKW/B/S MSZ-EF42VGKW/B/S MSZ-EF50VGKW/B/S OUTDOOR UNIT MUZ-EF25VG MUZ-EF35VG MUZ-EF42VG MUZ-EF50VG COOL 2.5kW 4.63 EER 19 dBA* 3.5kW 3.85 EER 21 dBA* 4.2kW 3.50 EER 28 dBA* 5.0kW 3.23 EER 30 dBA* HEAT 3.2kW 4.57 COP 21 dBA* 4.0kW 4.21 COP 21 dBA* 5.4kW 3.71 COP 28 dBA* 5.8kW 3.72 COP 30 dBA* ENERGY RATING 4.0 2.5 3.5 2.0 3.0 2.0 3.0 2.0 COOL Capacity Rated [kW] 2.5 3.5 4.2 5.0 Min-Max [kW] 0.9 - 3.4 1.1 - 4.0 0.9 - 4.6 1.4 - 5.4 Input Rated [kW] 0.54 0.91 1.20 1.55 EER 4.63 3.85 3.50 3.23 AEER 4.60 3.83 3.49 3.22 Star Rating 4.0 3.5 3.0 3.0 Indoor Sound Level (Quiet) [dBA] 19 21 28 30 (Low-SHi*) [dBA] 23–29–36–42 24–30–36–42 31–35–39–43 33-36-40-43 Running Current (In+Out) [A] 3.0 4.2 5.4 6.9 Air Volume In (SHi*) [L/s] 175 175 187 188 HEAT Capacity Rated [kW] 3.2 4.0 5.4 5.8 Min-Max [kW] 1.0–4.2 1.3–5.1 1.3–6.3 1.4 - 7.5 Input Rated [kW] 0.70 0.95 1.46 1.56 COP 4.57 4.21 3.71 3.72 ACOP 4.55 4.20 3.70 3.71 Star Rating 2.5 2.0 2.0 2.0 Indoor Sound Level (Quiet) [dBA] 21 21 28 30 (Low-SHi*) [dBA] 24-29-37-45 24-30-38-46 30-35-41-48 33-37-43-49 Running Current (In+Out) [A] 3.5 4.4 6.5 7.1 Air Volume In (SHi*) [L/s] 198 212 220 243 Controller Standard 7-Day Programmable Controller Optional Wired 7-Day Timer Optional: PAR Controller (Interface Required) Wi-Fi Built-in Power Supply (Powered From Outdoor Unit) 230 V / Single Phase / 50 Hz Maximum Current [A] 7.1 7.1 10.0 14.0 Indoor Dimensions (WxDxH) [mm] 885 x 195 x 299 Weight [kg] 11.5 Outdoor Dimensions (WxDxH) [mm] 800 x 285 x 550 800 x 285 x 714 Weight [kg] 31 34 35 40 Sound Level - SPL (Cooling-Heating) [dBA] 47-48 49-50 50-51 52-52 Piping Diameter (Liquid/Gas) [mm] 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 Max. Length/Height† [m] 20 / 12 20 / 12 20 / 12 30 / 15 Chargeless Piping Length [m] 7 7 7 7 Operation Range Outdoor Cooling [˚C] -10 / 46 -10 / 46 -10 / 46 -10 / 46 Heating [˚C] -15 / 24 -15 / 24 -15 / 24 -15 / 24 Indoor Unit Colour Black Diamond / Matte Silver / Pure White
