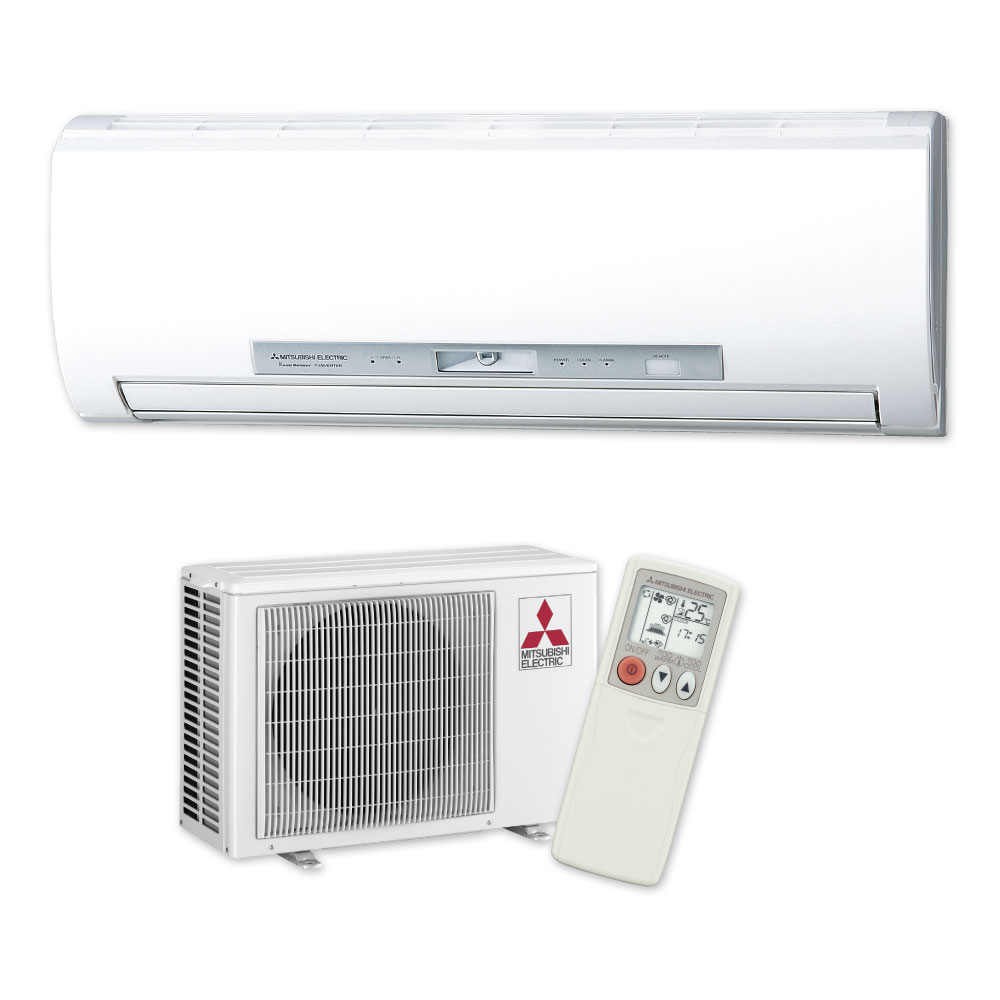

HyperCore FB35 High Wall Heat Pump

MSZ-FB35VAH

Our HyperCore FB35 high performance heat pump is guaranteed to give you its full 4kW of heat in temperatures as chilly as -15°C. Only HyperCore can offer this. This heat pump is ideal if you are looking to heat a smaller room and you live in frosty or high humidity area.

Discontinued Product
Replacement product available
MSZ-FH35VEHZ

Features

Low Temperature Performance

Unlike other heat pump systems which produce less heat when the outside temperature drops, the HyperCore FB35 will perform at ideal capacity down to -15°C. HyperCore is the only heat pump range that can guarantee this kind of performance. HyperCore is ideal for; locations where temperatures fall below zero, high altitude areas, high humidity areas or if you simply want the best heating performance available.

Advanced Energy Saving

Our advanced i-see sensor automatically seeks out temperature differences in the room you need to heat, directing airflow to these areas to bring them up or down to temperature. This prevents excessive heating or cooling and therefore unnecessary operation, ensuring total comfort and reduced energy wastage.

Quietness

Starting from barely a whisper, our Deluxe FB Series allows you to feel the warmth, not hear it. The range starts from a hushed 20dBA.

Plasma Duo Filtration

Perfect for asthma and allergy sufferers, these filters have two functions that work together to remove even the tiniest airborne particles and break them down.

Self Cleaning

A self cleaning ozone shower sterilises and deodorises the indoor unit, ensuring that you get clean, fresh air all year round.

Optional Wi-Fi Control Upgrade

With the addition of award-winning Mitsubishi Electric Wi-Fi Control, you can control and monitor your heat pump from absolutely anywhere via your smartphone, tablet or online account.

Read more and try a demonstration

Specifications

MSZ-FB35VA - Deluxe DC Inverter High Wall with Plasma Duo Filter System

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 3.5 kW · Capacity - Heating: 4.0 kW
· Capacity - Cooling (min. - max.): 1.1 - 4.1 kW · Capacity - Heating (min. - max.): 1.5 - 6.0 kW
· Power Input - Cooling: 0.89 kW · Power Input - Heating: 0.90 kW
· Star rating - Cooling: 3 · Star rating - Heating: 4
· EER / COP: 4.06 / 4.55 · AEER / ACOP: 3.94 / 4.42
· Previous Star rating: 6.0 / 6.0 · Sensible - Cooling: 2.78 kW
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -15 / +24°C
· Sound Level - Cooling (Low - Super High, dB(A)): 20 / 29 / 36 / 43 · Sound Level - Heating (Low - Super High, dB(A)): 21 / 29 / 36 / 44
· Current - Cooling [in+outdoor] (Rated / Max.): 4.1 / 10.0 A · Current - Heating [in+outdoor] (Rated / Max.): 4.1 / 10.0 A
· Air Volume - Cooling (Super High, Litre/sec): 187 · Air Volume - Heating (Super High, Litre/sec): 208
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 6.35
· Gas Pipe Size (OD, mm): 9.52 · Max. Pipe Length (m): 20
· Max. Pipe Height (m): 12 · Power Supply: 230V +/- 10% / Single Phase / 50 Hz
· Dimensions (WxDxH, mm): 798 x 257 x 295 · Weight: 12 kg

MUZ-FB35VAH - HyperCore High Performance DC Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split, HyperCore Inverter
· Operation Range - Cooling: -10 / +46°C · Operation Range - Heating: -25 / +24°C
· Sound Level - Cooling (dB(A)): 47 · Sound Level - Heating (dB(A)): 50
· Air Volume - Cooling (Litre/sec): 520 · Air Volume - Heating (Litre/sec): 493
· Power Supply: 230V +/- 10% / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 6.35 · Gas Pipe Size (OD, mm): 9.52
· Max. Pipe Length (m): 20 · Max. Pipe Height (m): 12
· Dimensions (WxDxH, mm): 800 x 285 x 550 · Weight: 36 kg
