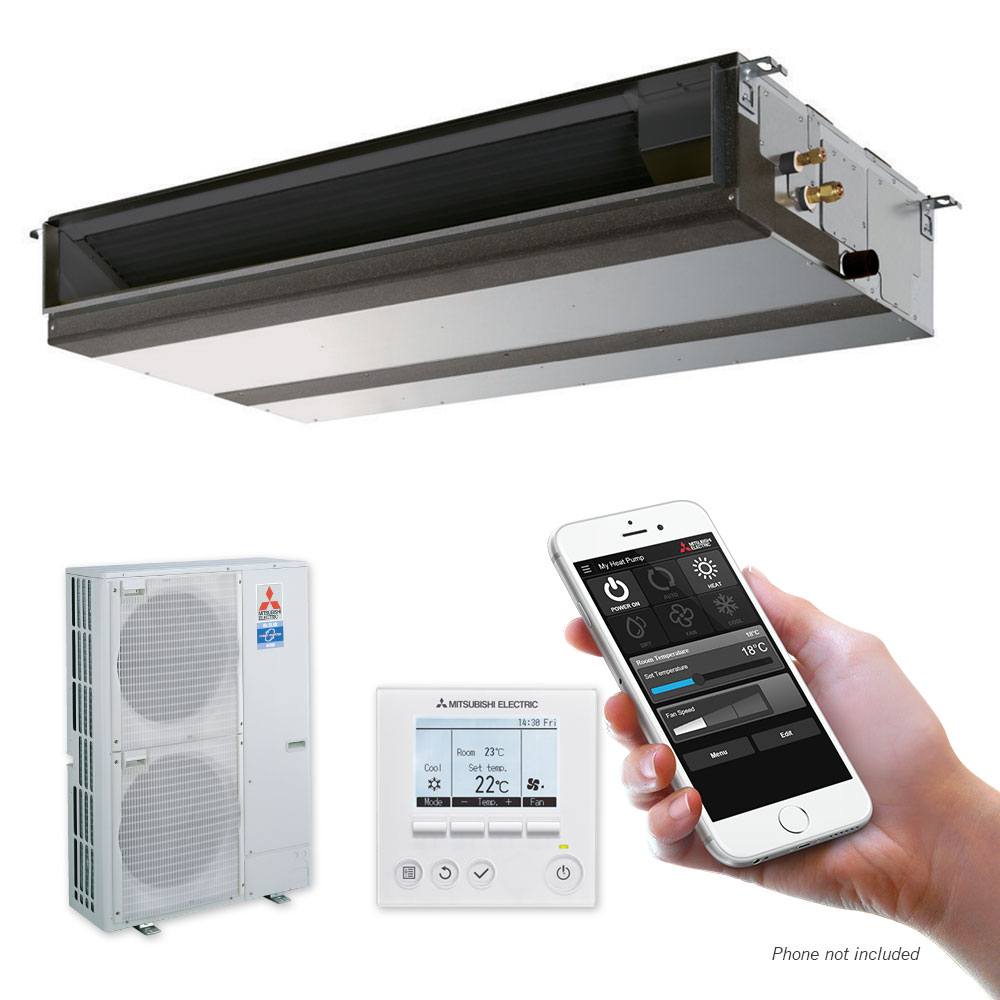

Ducted PEAD 140 Heat Pump with Wi-Fi

Large Room System // PEAD-RP140JAA + MAC-568IF-E

Our low profile ducted PEAD-RP140 has a wide range of static pressures, that allows airflow to be directed to different areas of your home or office with ease. This unit is ideal for heating or cooling a number of rooms. Includes PAR wired Controller. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately) allows you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.

Cooling Capacity13 kW
Heating Capacity16 kW

Features

Low Profile Design

Our low profile ducted systems at 250mm in height are specifically designed for installation in tight ceiling spaces.

Wide Range of Static Pressures with 3 Fan Speeds

Selectable external static pressure of 35, 50, 70, 100 and 125 Pa with 3 fan speeds allowing a wide range of installation possibilities.

Includes the Wi-Fi Control Interface

Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.

Read more and try a demonstration

Optional Zone Controller Upgrade

Transform your ducted system. With the ability to control up to 8 zones, expanded functionality and interaction, intuitive airflow control, and temperature, occupancy and brightness sensors – the PAC-ZC Zone Controller brings intuitive, yet simple control to a whole new level.

Click here for optional Zone Controllers

Specifications

PEAD-RP140JAA - Power Inverter Ceiling-Concealed

· Function: Cooling/Heating · Type: Single Split, Inverter
· Capacity - Cooling: 13 kW · Capacity - Heating: 16 kW
· Capacity - Cooling (min. - max.): 6.2 - 15.3 kW · Capacity - Heating (min. - max.): 5.7 - 18.0 kW
· Power Input - Cooling: 3.91 kW · Power Input - Heating: 4.04 kW
· EER / COP: 3.29 / 4.08 · AEER / ACOP: 3.12 / 3.86
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Airflow (Lo-Hi, Litre/sec): 533-650-767 · Sound Level (Lo-Hi, dB(A)): 40-44-49
· Current Indoor - Cooling (Running): 2.49A · Current Indoor - Heating (Running): 2.49 A
· Power Supply: 230V / Single Phase / 50 Hz · Refrigerant: R410A
· Liquid Pipe Size (OD, mm): 9.52 · Gas Pipe Size (OD, mm): 15.88
· Max. Pipe Length (m): 75 · Max. Pipe Height (m): 30
· Dimensions (WxDxH, mm): 1,600 x 732 x 250 · Weight: 43 kg
· External Static Pressure: 35-50-70-100-125 Pa · Note: Capacity ratings are based on the outdoor unit PUHZ-RP140VKA2-A only.
· [*]: -15°C in cooling when using an optional outdoor air outlet guide PAC-SG59SG-E.

PUHZ-RP140VKA2R1-A - DC Deluxe Inverter Outdoor Unit

· Function: Cooling/Heating · Type: Single Split or Multi Split, Power Inverter
· Multi-Split System Compatible: Yes (50:50) · Number of indoor units: 1, 2 or 3
· Capacity - Cooling: 13.0 kW · Capacity - Heating: 16.0 kW
· Capacity - Cooling (min. - max.): 6.2 - 15.3 kW · Capacity - Heating (min. - max.): 5.7 - 18.0 kW
· Operation Range - Cooling: -5 (-15*) / +46°C · Operation Range - Heating: -20 / +21°C
· Sound Level - Cooling (dB(A)): 50 · Sound Level - Heating (dB(A)): 52
· Airflow (Litre/sec): 2000 · Current - Cooling Outdoor (Rated / Max.): TBA / 28 A
· Current - Heating Outdoor (Rated / Max.): TBA / 28 A · Power Supply: 230V / Single Phase / 50 Hz
· Refrigerant: R410A · Liquid Pipe Size (OD, mm): 9.52
· Gas Pipe Size (OD, mm): 15.88 · Max. Pipe Length (m): 75
· Max. Pipe Height (m): 30 · Dimensions (WxDxH, mm): 1050 x 330(+30) x 1338
· Weight: 120 kg · [*]: -15°C in cooling when using an optional outdoor Air Protect Guide PAC-SH95AG-E.

·  Rating Conditions (AS / NZS 3823):
   Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB.     Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.

·  Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.

·  Dry function will not work when the room temperature is below 13°C.

·  Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.

·  Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.

·  Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
   EER = Energy Efficiency Ratio
   COP = Coefficient of Performance
   AEER# = Annual Energy Efficiency Ratio
   ACOP# = Annual Coefficient of Performance
   #These include standby power in the rating calculation

·  Star Ratings based on the Seasonal Energy Rating standard for New Zealand - cold zone [GEMS 2019]

Downloads

Support

Optional

Optional Accessories

The PAC-ZC40L-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 4 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC40L-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC40L-E Zone Controller is compatible with 24V dampers only.
The PAC-ZC40H-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 4 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC40H-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC40H-E Zone Controller is compatible with 240V dampers only.
The PAC-ZC80L-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 8 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC80L-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC80L-E Zone Controller is compatible with 24V dampers only.
The PAC-ZC80H-E Zone Controller brings to fruition expanded functionality and interaction to realise even greater energy savings. With the ability to control up to 8 zones, and equipped with Intuitve Airflow Control and three built in sensor functions (temperature, occupancy, brightness), the PAC-ZC80H-E Zone Controller brings intuitive, yet simple control to a whole new level. The PAC-ZC80H-E Zone Controller is compatible with 240V dampers only.
